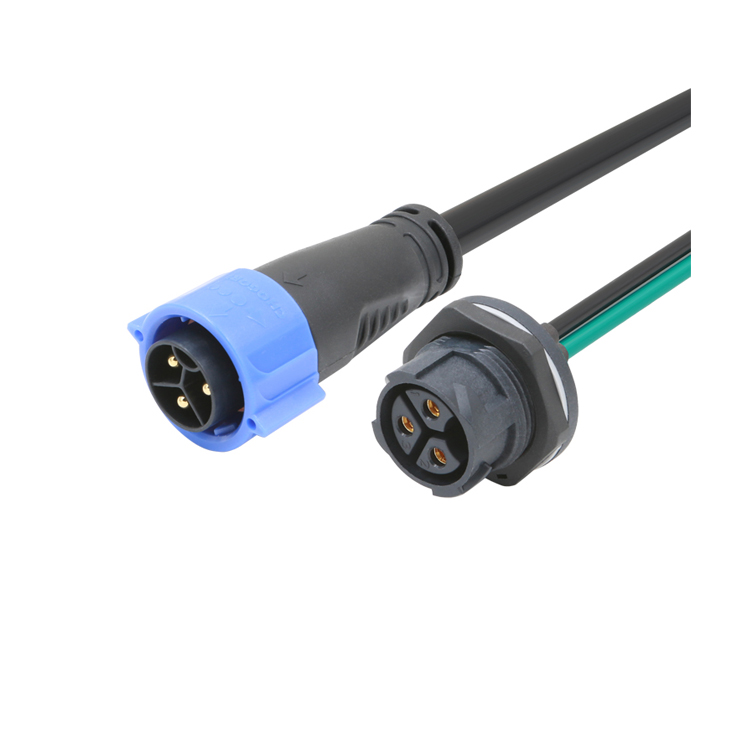

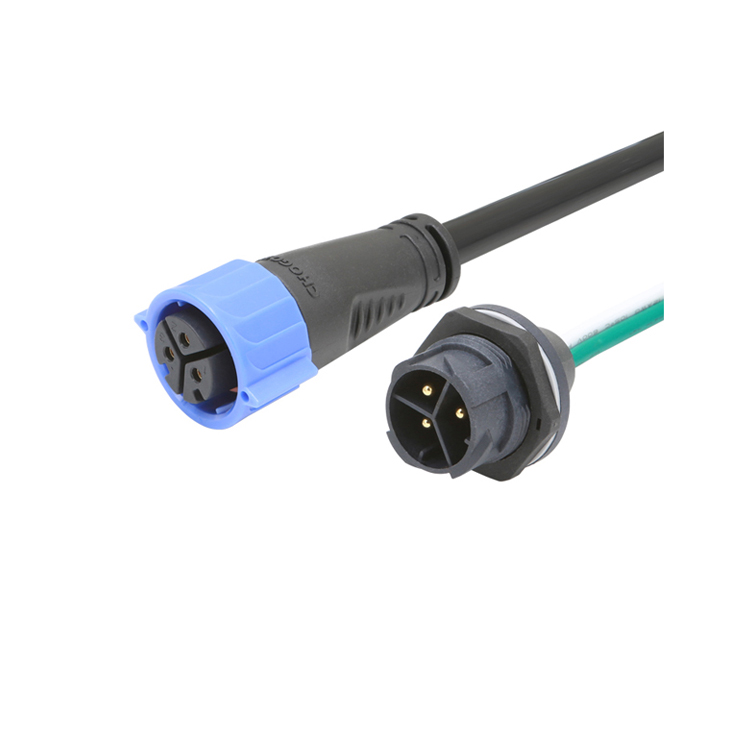

Large 3 Pin (50A)

應用範圍：大電流充電

Advantages
• Four key push lock mechanism
• Audible click when lock engaged
• One-piece plug injection molding
• Partition wall between the terminals for voltage applications
• RoHS and REACH compliant
• UL2238

下載圖冊解決方案聯係我們

規格參數相關產品

Mating Cycle：≥2,000 Cycles	Voltage Rating：600V	Operating Temperature：-40°C to 105°C
Pullout Force：<100N	Current Rating：50A	IP Rating：IP67 Mated
Wire Processing：Solder	Withstand Voltage：2,500V AC	Salt Spray：5% Nacl, 48H
Wire Gauge：9AWG/Max	Insulation Resistance：>100MΩ	Flammability Rating：UL94V-0
